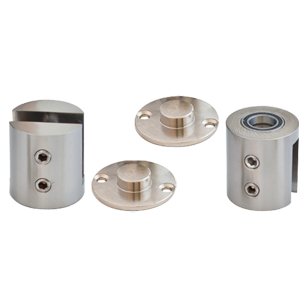

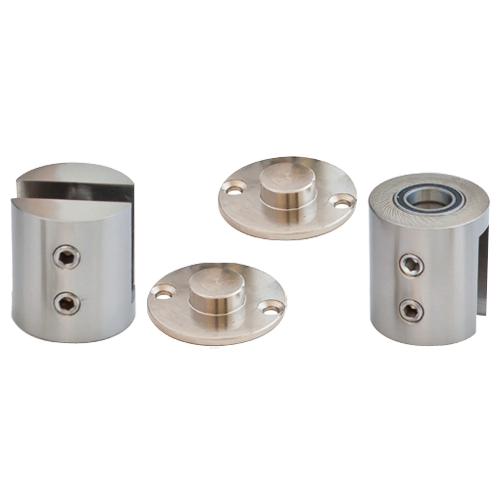

Floor Spring - Free Hinge without return spring
Finish : Polished Chrome
Load Capacity - 60Kg
Free Hinge without return spring, body completely realized in brass. Brass bushing, without embedding in floor and ceiling. Ambidextrous opening models.
Unnecessary glass drilling, glass is fixed in the hinge by special fixing system provided by special anti-slip plates.
Glass Dimensions
H(max 2200mm) = Z - 26mm
L(max 800mm) = W - 10mm
Glass Tightening screws : max. 3.5Nm
Max Glass thickness 12mm
use glass with accordance with law
Place anti-slip plates between glass and hinge
