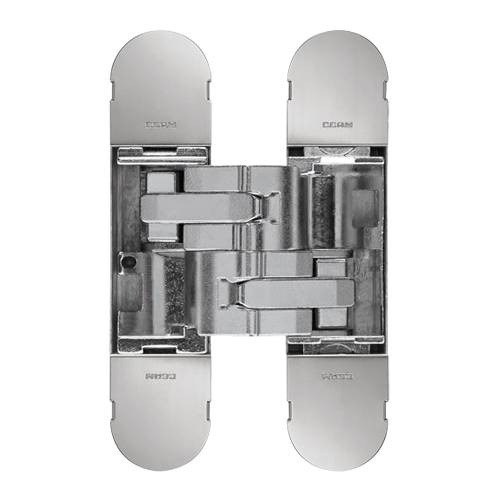

Invisible Adjustable Hinge with Screws for Doors
Finish : Nickel Plated
The reversible hinge for doors with thickness from 35 to 45mm
3D concealed hinges: with a gap between the two wings of 23mm, 1230s is the ideal solution for reversible doors or to go around skirting boards or trims or cladding.

Height: 130 mm
Width: 30 mm
Depth: 21 mm
Suitable for doors: Wood, Aluminium, Steel
Minimum door thickness: 35 mm
Fire resistance: EI30
Utilization: Residential, Commercial, Office
Load capacity 2 hinges: 50 kg
Load capacity 3 hinges: 70 kg
Load capacity 3 hinges asymmetrical: 74 kg
Load capacity 4 hinges: 80 kg

We have a huge collection of Door Hinges that is available in several sizes, shapes and designs.
Heavy weight continuous industrial hinge (large and wide) for industry applications are our specialty. We are suppliers for steel, zinc plated steel, aluminum, solid brass and stainless steel hinges for outdoor and marine durability in many different dimensions.
Available in many sizes from narrow to wide and a variety of finishes such as elector brass steel, nickel and florentine/staturary bronzed plated, aluminium and solid brass or as outdoor stainless steel hinge.
