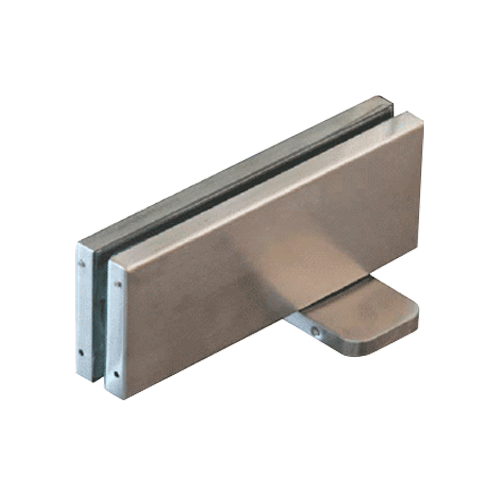

Pivot door closer for Glass Doors
Suitable for 8-13mm thick glass doors
Maximum door 100kg
Suitable for double action doors.
Applicable max door 750 – 1000mm wide
Non handed, quick and easy installation
Low opening resistance and high closing efficiency
Simple final adjustment
Ambient temperature -20°C to 50°C
Satin and Polished stainless steel (other finishes available on request) Complete with top pivot set.
With or without hold open at 90°

PDC-100 Pivot Door Closers are the first in NHN’s next generation of hidden door closers.
Suitable for 8-13mm thick glass doors
Incorporating the latest cam type technology, PDC-100 pivot door closers offer easy opening with increased efficiency on the closing torque. The closing speed is easily adjustable via two independent adjustment valves.
PDC-100 is a high performance, slim line closer with easy installation, reducing cost and time as there is no floor preparation required.
